Product Description

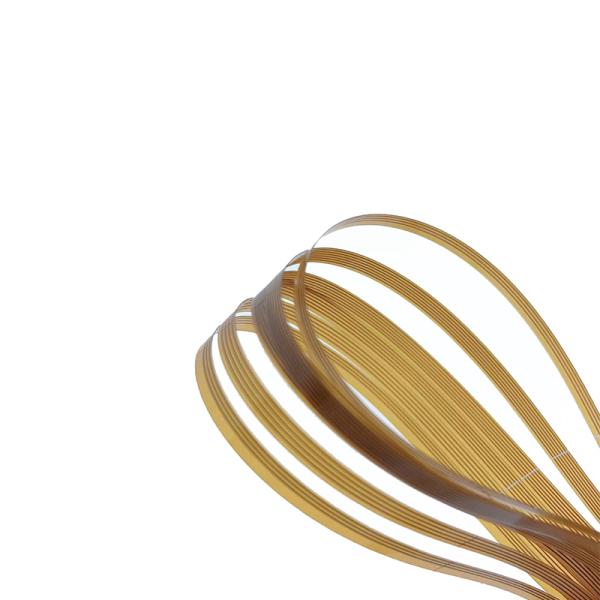

Flexible Printed Circuit Board FPC Cable LCD Display FPC Inductor
Polyimide
| Product Name | Rigid-Flex PCB Circuit board |
| Layers | 4L Rigid+2L Flexible board |
| Thickness | 1.2mm |
| Material | FR-4(Standard FR4,Mid-Tg,FR4,Hi-Tg,FR4,Lead free assembly
material), |
| Halogan-Free,Ceramic filed,,Polyimide,BT,PPO,PPE,Hybrid,Partial
hybrid,etc. |
| Min.idth/Spacing | Inner layer:3mil/3mil(HOZ),Outer layer:4mil/4mil(1OZ) |
| Max Copper Thickness | UL certificated:6.0OZ/Pilot run:12OZ |
| Min.Hole Size | Mechanical drill:8mil(0.2mm) Laser drill:3mil(0.075mm) |
| Max.Panel Size | 1150mmX560mm |
| Aspect Ratio | 18:01:00 |
| Surface Finishing | ENIG |
| Special Process | Buried Hole,Blind Hole,Embedded Resistance,Embedded
Capacity,Hybrid,Partial hybrid,Partial high density,Back
drilling,and Resistance control. |
| Quality Grade | Standard IPC 2 |
| Board Size | Min 6mm*6mm, Max 400mm*500mm |
| Board Thickness | 0.6mm - 2.0mm |
| Copper Thickness | 0.5oz - 2.0oz |
| Solder Mask Sides | As per the file |
| Solder Mask Color | Green |
| Solder Stop Coating | PI and PET Film |
| Silkscreen Sides | As per the file |
| Silkscreen Color | White |
| Min Annular Ring | 4mil |
| Min Hole Diameter | 8mil |
| Tolerance Dimension | 0.05mm |
| Other Tech | Peelable Solder Mask, Stiffener |
Our Production Capability for PCB:
1. Layer: 1 to 28 layers
2. Material type: FR-4, CEM-1, CEM-3, High TG, FR4 Halogen Free,
Rogers
3. Board thickness: 0.21mm to 7.0mm
4. Copper thickness: 0.5 OZ to 7.0 OZ
5. Copper thickness in hole: >25.0 um (>1mil)
6. Size: - Max. Board Size: 23 × 25 (580mm×900mm)
- Min. Drilled Hole Size: 3mil (0.075mm)
- Min. Line Width: 3mil (0.075mm)
- Min. Line Spacing: 3mil (0.075mm)
7. Surface finishing: HASL / HASL lead free, HAL, Chemical tin,
Chemical Gold, Immersion Silver/Gold, OSP, Gold plating
8. Solder Mask Color: Green/Yellow/Black/White/Red/Blue
9. Tolerance: - Shape tolerance: ±0.13
- Hole tolerance: PTH: ±0.076 NPTH: ±0.05
