64P 2.54mm pitch connector IDC socket ribbon cable
Product name | IDC ribbon cable |
Item | IDC rainbow ( grey, black ) flat ribbon cable |
Type | UL 2651 |
Flat wire size | 28AWG |
Pin number | 2 pin to 64 pin (double row) |
Pitch | 1.0mm , 1.25mm , 1.27mm, 2.54mm |
Insulation materials | PVC |
insulation thickness | 9 mils |
Rated temperature | 105C |
Rate voltage | 300V |
Construction | 7/0.127TS |
Customize | Acceptable |
Cablelinker has the capability & tooling to manufacture most forms
of IDC (Insulation Displacement Connector) Ribbon Cable assemblies.
The IDC flat ribbon cable connector system provides a modular
approach to electrical interconnection. The modular design of IDC
headers, sockets, etc. offers a very reliable mass termination and
cost effective approach to interconnecting PCBs, or
wire-to-board,separable header/socket or dual-in-line applications,
outstanding features are high contact reliability, long life and
low contact resistance. IDC Ribbon Cables can be manufactured in
many sizes the most popular being 10, 16, 26 and 34 way .All our
IDC Ribbon Cable assemblies are 100% tested for continuity and
crossover using our electronic testers.

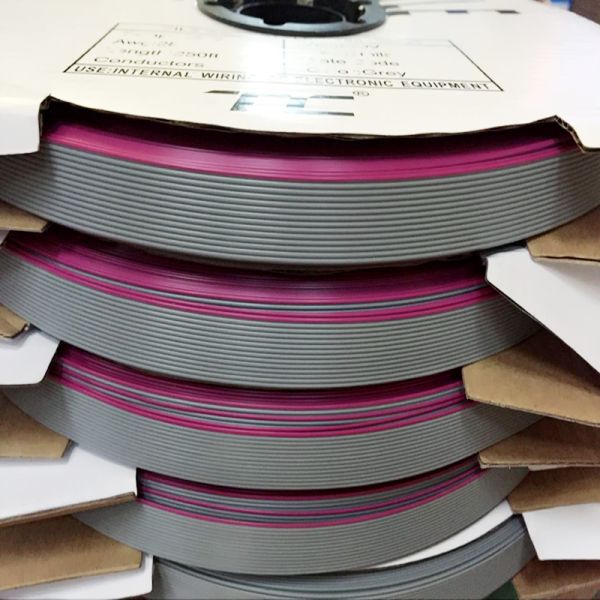

IDC Ribbon Cable assemblies can be supplied in standard grey and
rainbow coloured, it can be supplied in twisted pair or screened
versions at lengths to your are given to customers,requirements
with a quick turnaround, whilst most IDC Ribbon Cable is flat,
round format versions are also available, this style can also be
supplied screened.
Cablelinker offer a range of IDC ribbon cable assemblies to suit
your application.
IDC Ribbon Cable Assembly
Various number of ways available.
RoHS Compliant.
Can be built to any specification.
Small, medium and large volume work undertaken.
Most parts are held in stock to enable short lead times for builds.
All types and sizes available from 4 to 64 way, using sockets,
transitions, d-subs, micro match and many more, everything to suit
your IDC cable requirements.
The cable can be customized according to customer requirements
All of the above products can provide follow-up processing services
(eg: cutting, strapping, crimping, etc)
Please send through your enquiry or datasheet (if you have) using
our contact form .
