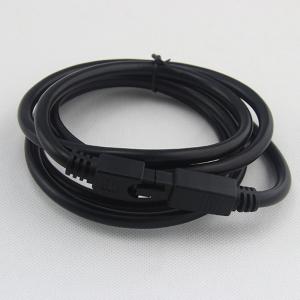

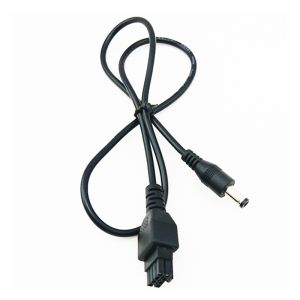

Molex's Mini-Fit double-ended, overmolded assemblies with strain
relief are available in 2- to 10- circuit sizes and cable lengths
from 500 mm to 2 m for a rugged signal connection. Mini-Fit Jr.™
1301210060 : Black Neoprene Cable And Cord Grip Cables, Wire -
Management; CABLE CONNECTOR 14AWG 2.5NPT Specifications: Cable
Diameter: 0.06" ~ 0.08" (1.6mm ~ 2.1mm) ; Color: Black ; Conduit
Hub Size: - ; Includes: Nut, Gasket, Seal ; Material: Neoprene ;
Panel Hole Size: - ; Thread Size: 2 1/2" NPT ; Type: Cable Gland ;
Lead Free Status: Vendor Undefined ; RoHS Status: Vendor Undefined
02-09-1119 : CONTACT, FEMALE, 22-18AWG, CRIMP Specifications:
Connector Type: Contact, Crimp ; Series: 1381 ; For Use With: Molex
5.08mm Pitch Connectors ; Current Rating: - ; Contact Size: - ;
Contact Gender: Socket ; Contact Material: Brass ; Wire Size (AWG):
- ; Contact Termination: Crimp ; Contact Plating: Tin
11-01-0168 : Extraction Tool
22-05-7045 : Tin Through Hole, Right Angle Rectangular - Headers,
Male Pin Connectors, Interconnect Header, Shrouded; CONN HEADER
4POS 2.5MM R/A TIN Specifications: Color: Natural ; Connector Type:
Header, Shrouded ; Contact Finish: Tin ; Contact Mating Length:
0.138" (3.50mm) ; Features: - ; Mounting Type: Through Hole, Right
Angle ; Number of Positions Loaded: All ; Number of Rows: 1 ;
Pitch: 0.098" (2.50mm) ; Row Spacing: - ; Packaging: Bulk
0752374154 : Gold Through Hole Backplane - Specialized Connectors,
Interconnect Header, Male Pins; CONN HEADER BACKPLANE 100PS GOLD
Specifications: Color: Gray ; Connector Style: GbX®, Guide
Right ; Connector Type: Header, Male Pins ; Connector Usage:
Backplane ; Contact Finish: Gold ; Contact Finish Thickness: - ;
Contact Layout, Typical: 50 Differential Pairs ; Features: Ground
Plane Shield, Shrouding - Open End ; Mount
0761657107 : Gold Through Hole Backplane - Specialized Connectors,
Interconnect Header, Male Pins; IMPACT BP 3X10 GL/W SN
Specifications: Color: Black ; Connector Style: Impact™, Guide Left
; Connector Type: Header, Male Pins ; Connector Usage: Backplane,
Midplane, Orthogonal ; Contact Finish: Gold ; Contact Finish
Thickness: 30µin (0.76µm) ; Contact Layout, Typical: 30
Differential Pairs ; Features: Shrouding, Right E
0761655603 : Gold Through Hole Backplane - Specialized Connectors,
Interconnect Header, Male Pins; IMPACT BP 3X16 GR SN
Specifications: Color: Black ; Connector Style: Impact™, Guide
Right ; Connector Type: Header, Male Pins ; Connector Usage:
Backplane, Midplane, Orthogonal ; Contact Finish: Gold ; Contact
Finish Thickness: 30µin (0.76µm) ; Contact Layout, Typical: 48
Differential Pairs ; Features: Shrouding, Open E
39351-0011 : Free Hanging (In-Line) Terminal Block - Headers, Plug
And Socket Connectors, Interconnect Plug, Female Sockets; CONN TERM
BLOCK 3.5MM 11POS R/A Specifications: Terminal Block Type: Plug,
Female Sockets ; Positions Per Level: 11 ; Pitch: 0.138" (3.50mm) ;
Number of Levels: 1 ; Header Orientation: - ; Plug Wire Entry: 180°
; Termination: Screw ; Wire Gauge: 16-24 AWG ; Current: 10A ;
Mounting Type: Free Hanging (In-Line) ; Features: - ; Color
0395016512 : Through Hole Terminal Block - Headers, Plug And Socket
Connectors, Interconnect Header, Male Pins, Shrouded (4 Side);
3.5MM EURO HEADER VERT GRN 12POS Specifications: Terminal Block
Type: Header, Male Pins, Shrouded (4 Side) ; Positions Per Level:
12 ; Pitch: 0.138" (3.50mm) ; Number of Levels: 1 ; Header
Orientation: Vertical ; Plug Wire Entry: - ; Termination: Solder ;
Wire Gauge: - ; Current: 8A ; Mounting Type: Through Hole ;
Features: - ; Col
09-18-5069 : 6 CONTACT(S), MALE AND FEMALE, POWER CONNECTOR,
SOLDER, SOCKET Specifications: Connector Type: POWER CONNECTOR ;
Gender: MALE AND FEMALE ; Termination Types: SOLDER ; Number of
Contacts: 6
78914-0044 : PGA68, IC SOCKET Specifications: Product Type: IC
Socket ; Socket Type: PGA ; Number of Contacts: 68
